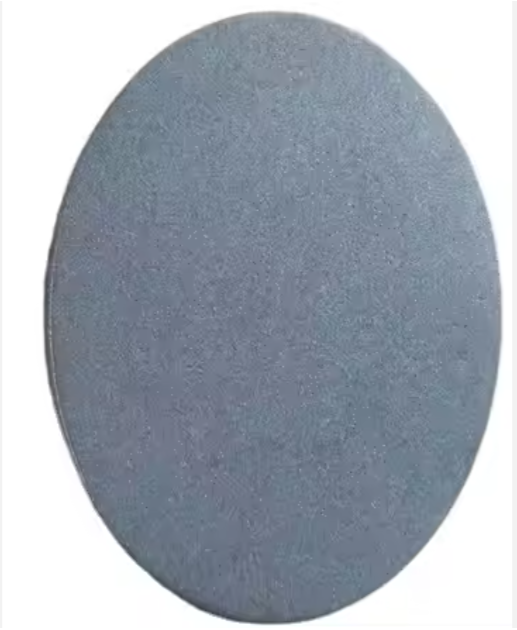

Iridium-Plated Foam Titanium is a high-performance porous material designed for hydrogen production, electrolysis, and fuel cells. It features a titanium foam structure coated with high-purity iridium, providing superior corrosion resistance, excellent conductivity, and enhanced catalytic efficiency. This material is widely used in PEM electrolyzers, fuel cells, and advanced electrochemical applications.
We offer customized sizes, pore structures, and iridium loadings to meet specific industrial and research needs. Contact us for more details!
Product Description
Iridium-plated Titanium Foam combines the lightweight, high-porosity structure of Grade 1 Titanium with the exceptional electrocatalytic activity of high-purity Iridium. Specifically engineered for the Oxygen Evolution Reaction (OER), this material serves as a premium Liquid/Gas Diffusion Layer (LGDL) and anode current collector, significantly reducing overpotential and enhancing the efficiency of hydrogen production.
| Category | Parameter | Specification Details |
| Base Material | Titanium Foam | Pure Titanium (Gr1 / Gr2) |
| Porosity | 70% | |
| Pore Size | 100 µm – 500 µm | |
| Thickness | 0.5 mm – 5.0 mm | |
| Iridium Coating | Purity | 99.99% High-Purity Iridium |
| Coating Thickness | 0.1 µm – 5.0 µm (Customizable) | |
| Iridium Loading | 0.2 mg/cm² – 5 mg/cm² | |
| Coating Method | Electroplating / Chemical Deposition | |
| Properties | Temp Resistance | Up to 600°C |
| Conductivity | Excellent (Optimized for high-current density) | |
| Shape | Sheets, Rolls, or Laser-cut Custom Shapes |
PEM Electrolyzer Anodes: The premier Liquid/Gas Diffusion Layer (LGDL) for green hydrogen production.
Electro-winning & Electro-plating: Dimensionally Stable Anodes (DSA) for recovering precious metals.
Fuel Cell Technology: Current collectors for high-performance electrochemical stacks.
Water Treatment: Advanced oxidation processes for industrial wastewater.
Standard Sheet Sizes:
200 mm × 300 mm
500 mm × 500 mm
1000 mm × 1000 mm
Custom sizes available upon request
Roll Form: Available upon request
Custom Shapes: Laser cutting or machining available
Precision Laser Cutting: Accurate to ±0.1mm for circular, rectangular, or complex gasket designs.
Gradient Coating: Customized Iridium loading based on your specific current density requirements.
Custom Dimensions: Large sheets up to 1000mm x 1000mm or continuous rolls.
Core Advantages
The high-purity Iridium coating provides a robust protective layer, preventing the titanium substrate from forming a resistive oxide layer (passivation) in the harsh, acidic environments of PEM electrolyzers.
With an optimized Iridium loading (up to 5 mg/cm²), our foam titanium offers a high specific surface area, maximizing the contact between the catalyst and the electrolyte to lower the OER overpotential.
The 70% porosity and controlled pore size (100–500 µm) facilitate efficient bubble release and rapid electrolyte supply, minimizing mass transfer losses even at high current densities.
Using advanced electroplating technology, the Iridium atoms are firmly bonded to the Titanium skeleton, ensuring zero peeling and long-term stability during thousands of hours of operation.
Why Choose us
1. Integrated Management Systems
Our factory operates under a unified management framework to ensure consistent quality and operational excellence:ISO 9001:2015 (Quality Management): Guarantees that every batch of metal foam, from raw material to iridium coating, undergoes a rigorous 100% inspection process for thickness, density, and purity.ISO 14001:2015 (Environmental Management): Reflects our commitment to sustainable manufacturing, particularly in the chemical deposition and electroplating processes.OHSAS 18001:2007 (Occupational Health & Safety): Ensures a safe and professional working environment, which translates to stable production lead times and higher craftsmanship.
2. International Product Compliance
Our products are ready for immediate integration into global energy projects:CE Mark: Fully compliant with European safety, health, and environmental protection standards.RoHS Certification: Ensures our metal foams are free from hazardous substances, making them safe for green energy applications like hydrogen production and water treatment.
3. Traceability & Testing
Each shipment is accompanied by a Material Test Certificate (MTC). Upon request, we provide:XRF Analysis: To verify Iridium loading ($mg/cm^2$).SEM Morphology: To confirm 3D reticulated structure and coating uniformity.Purity Reports: Confirming ≥99.8% Nickel or Grade 1 Titanium base.
Whether you are in the R&D stage or scaling up to MW-level production, our technical team is ready to assist with custom loading and thickness optimizations.
